GI
HDGI (HOT DIPPED GALVANIZED STEEL COIL)

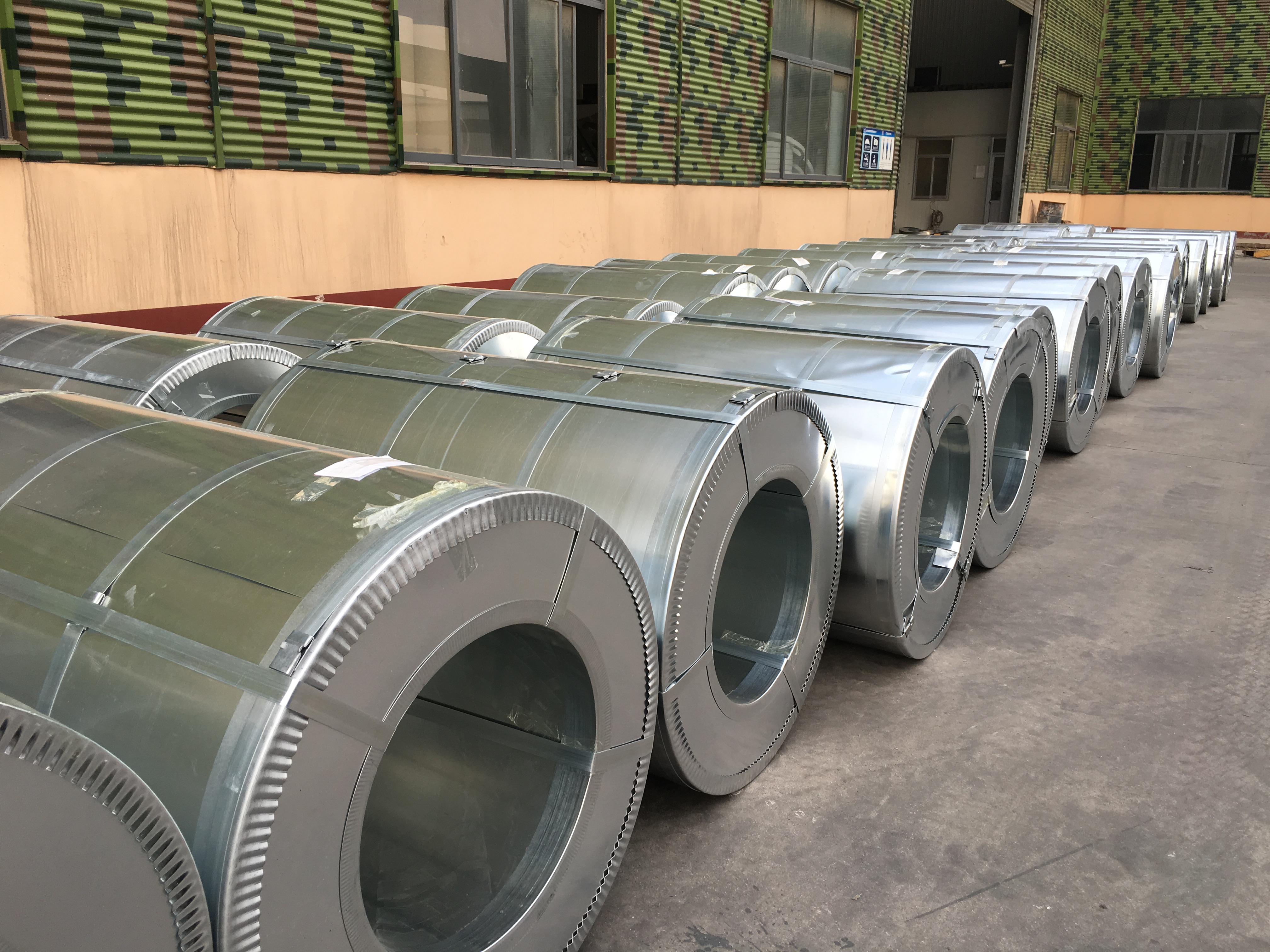

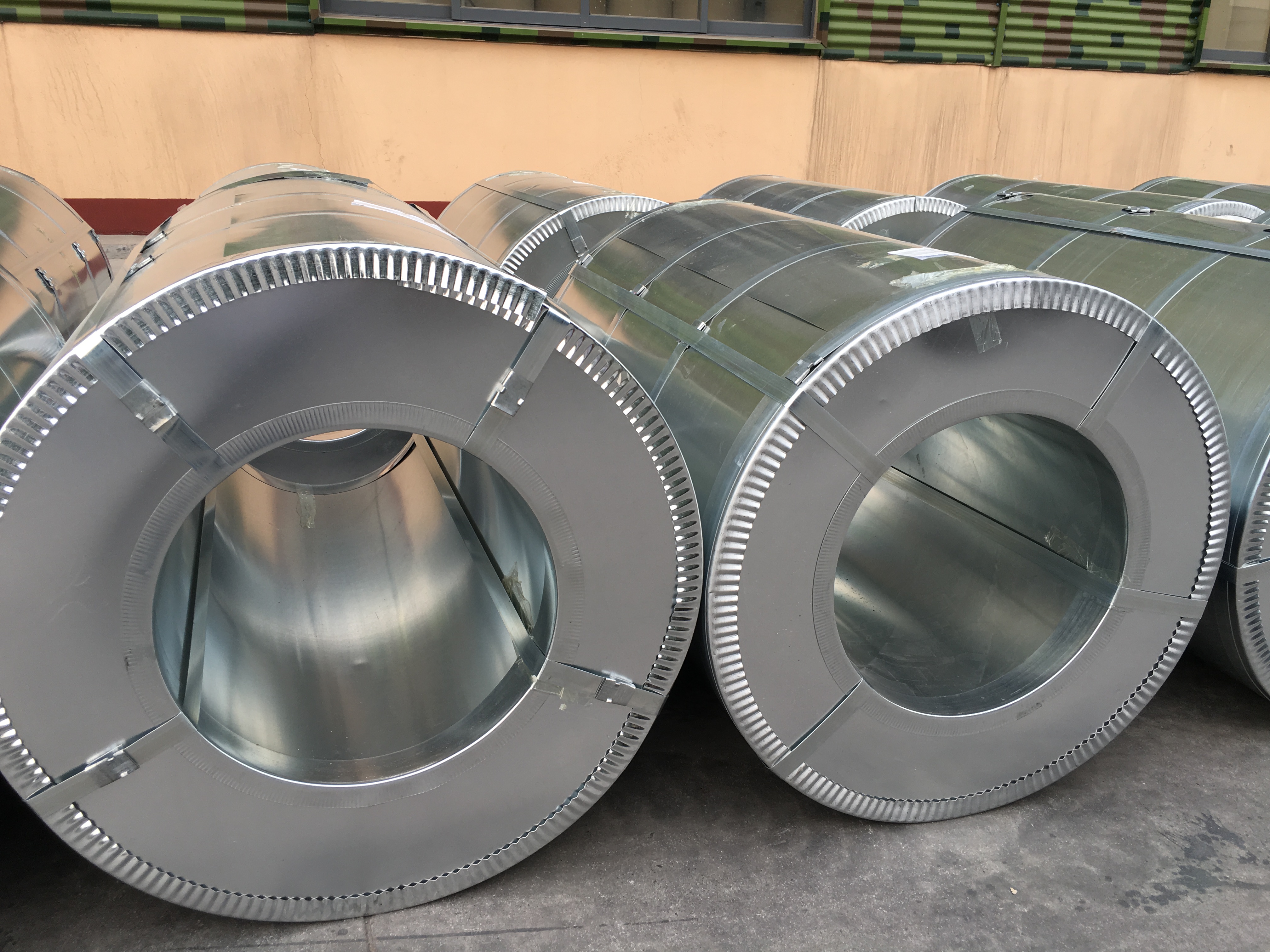

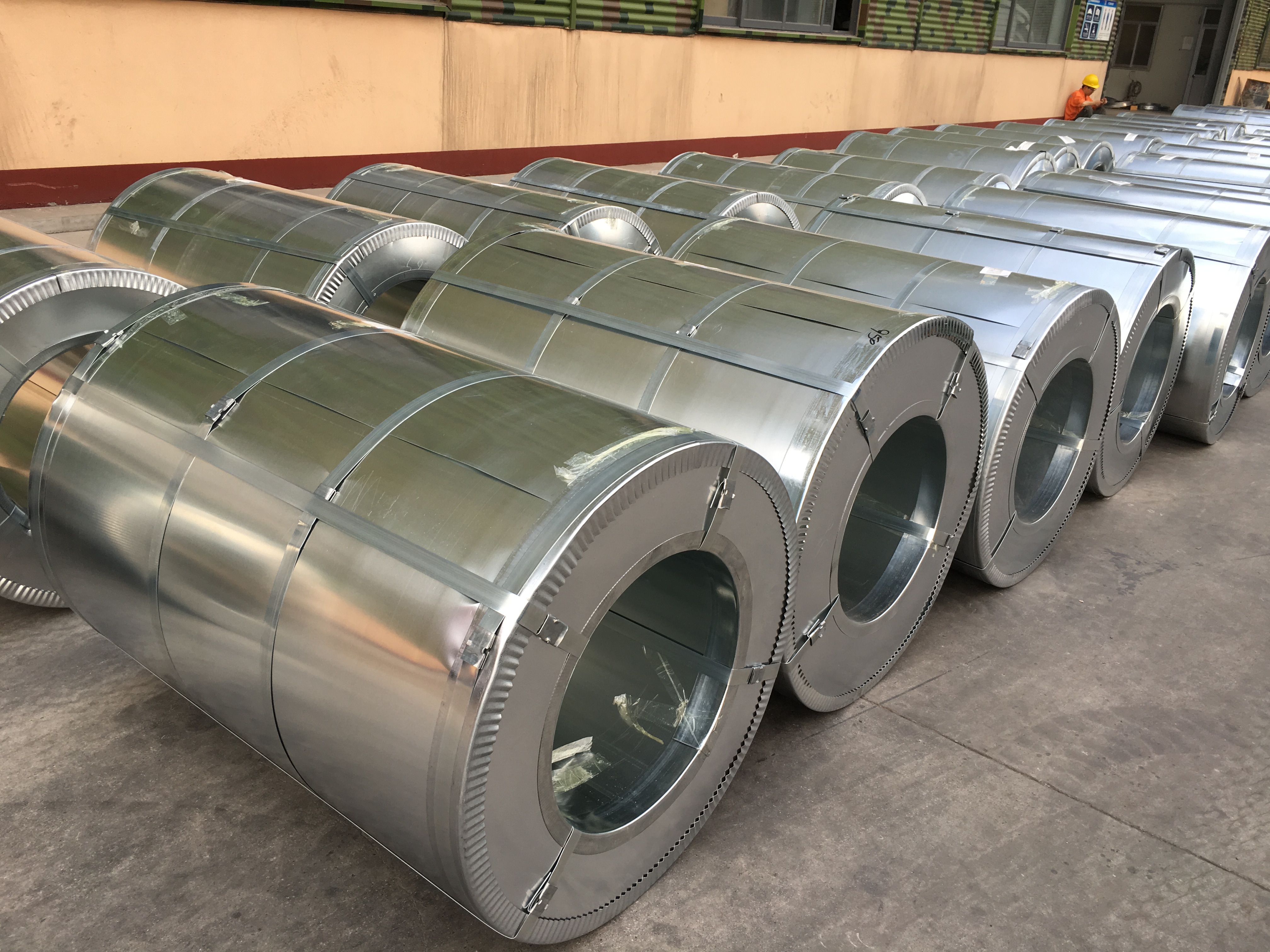

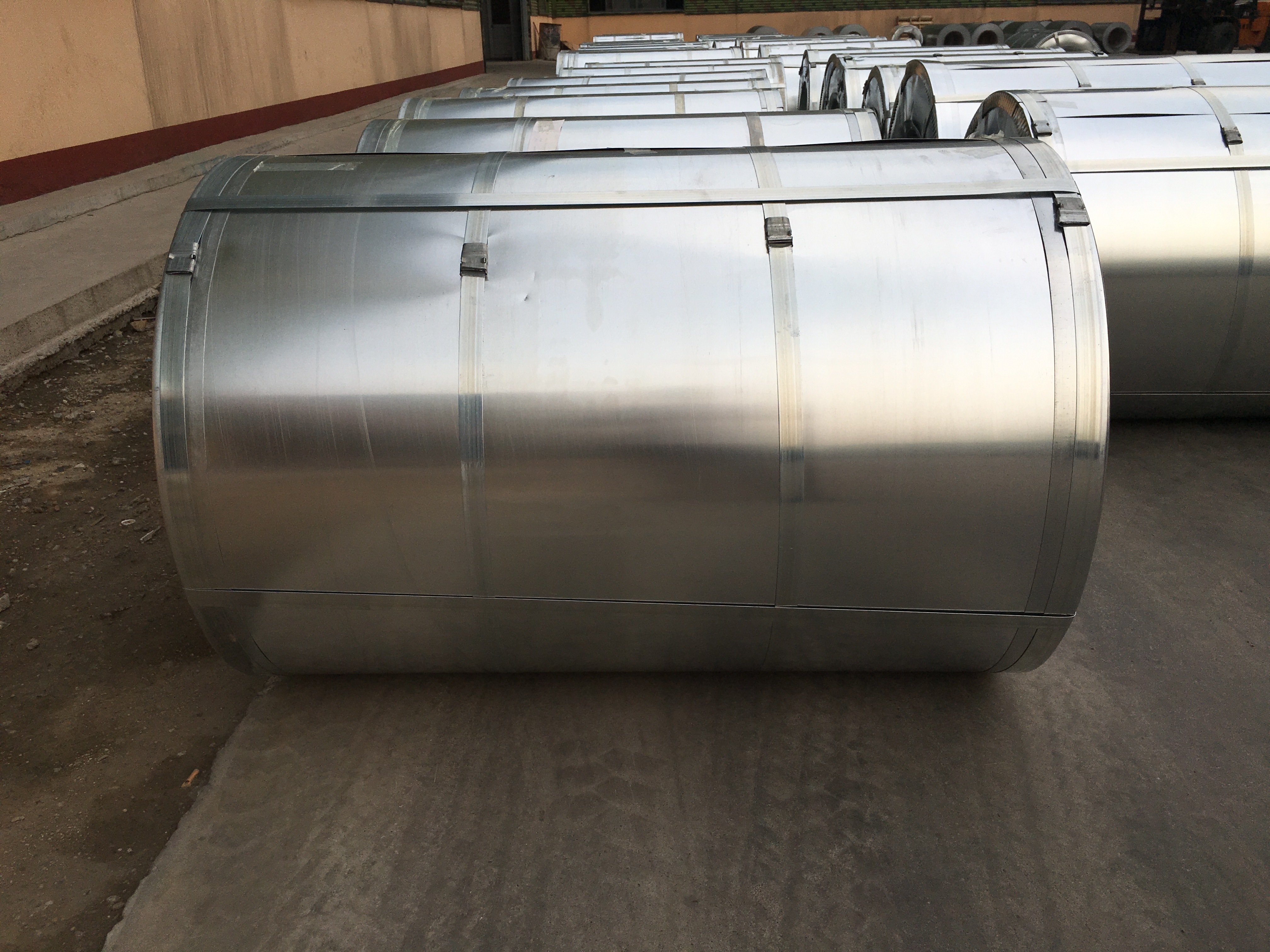

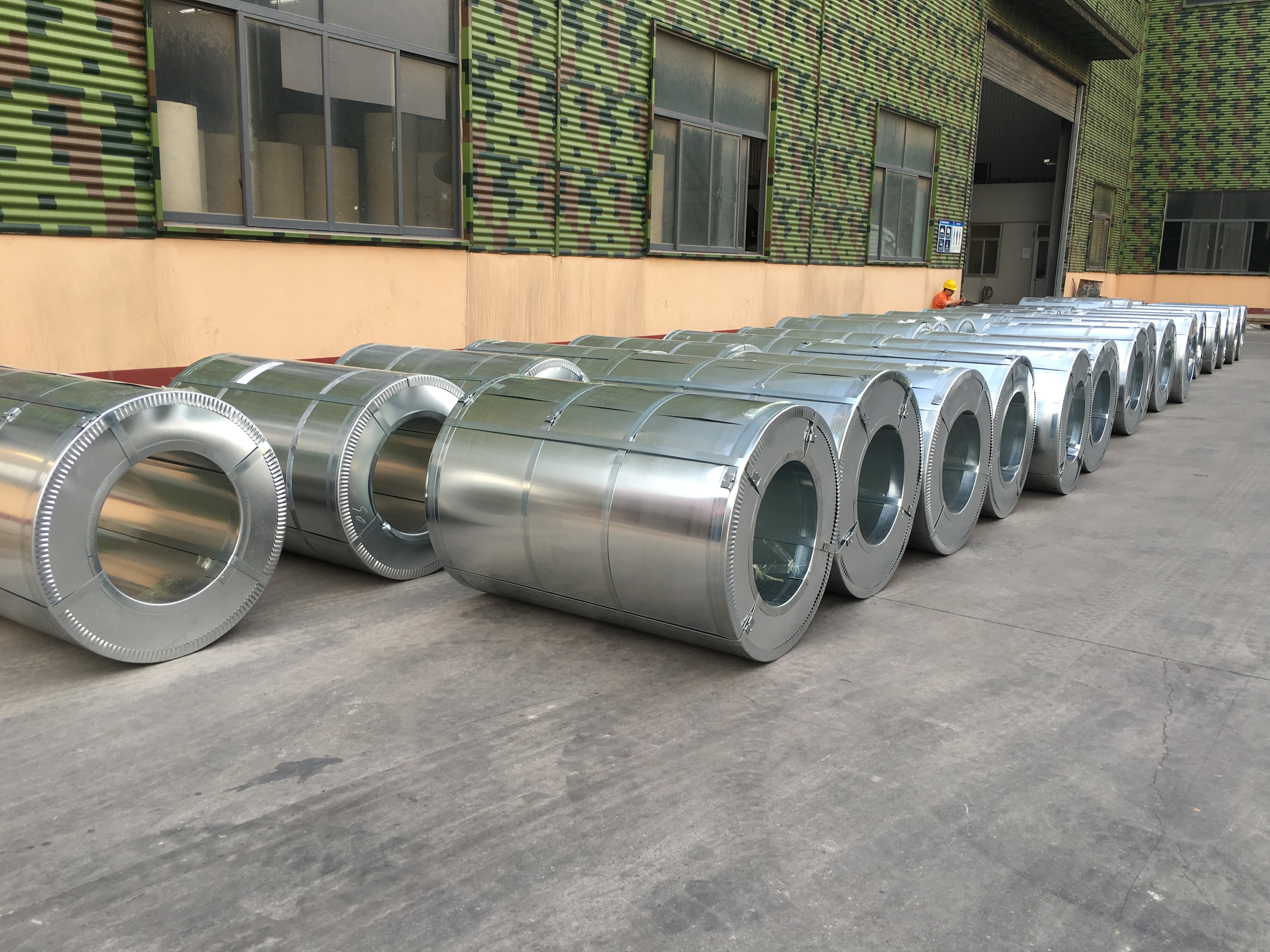

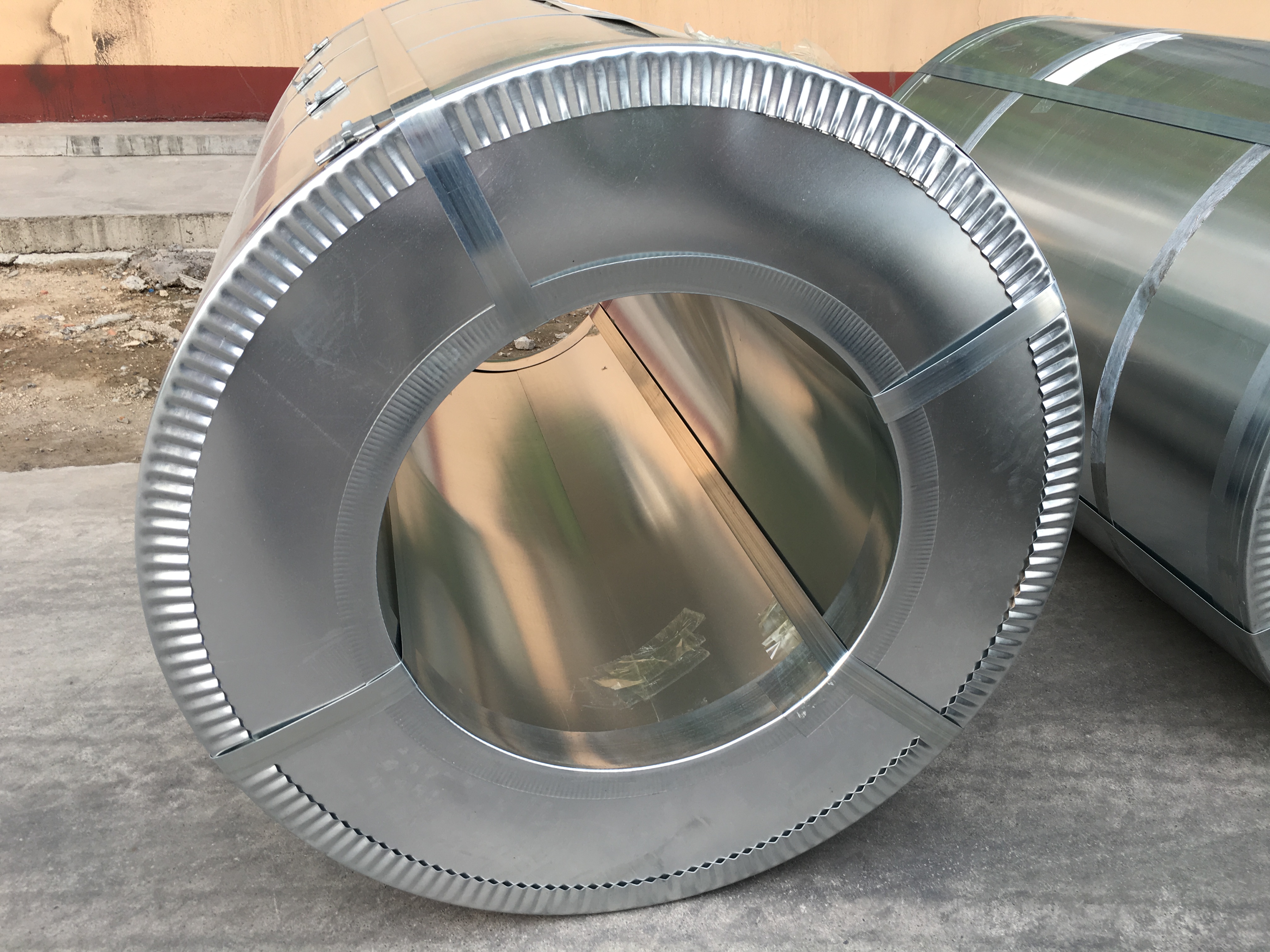

Galvanized steel coils
THICKNESS: 0.13mm-0.8mm
WIDTH:750mm-1250mm
ZINC COATING: Z40-Z275
SKIN PASS, PASSIVATION
| Product | Hot Dip Galvanized Steel coils/ sheets |
| Production capacity yearly | 200000ton |
| Thickness | 0.09MM- 4MM |
| Width | 600MM - 1250MM |
| Zinc Coating | Z30 - 300g/㎡ |
| ID of Coil | 508MM/610MM |
| Surface Structure | Regular spangle,Minimum spangle, Zero spangle, Big spangle |
| HRB | Soft Hard (＜60)，Medium Hard (60-85), Full Hard (85-95) |
| Surface Treatment | Oiled (O), Chromated (C),Phosphating (P), SKIN PASS, PASSIVATION |
| Standard Seaworthy Export Packing | Mill's standard export seaworthy packing, with waterproof wrapping from inside and metallic cover from outside, securely strapped and mounted on skids (no cartons packing). Coils to be packet with 5 MM metallic protector in the inside diameter: sleeve/circle to be in steel, not in paper/cardboard |
| Coil Weight | 3-16 Tons |
| Standard | ASTM-A653; JIS G3302; EN10147 |
| Payment Terms | T/T, LC |
| MOQ | 50 tons or one container |
| Delivery | 45days |
